Internet¶
On the left side of web Admin Panel -> INTERNET
The internet page is the home page. The top half has a diagram showing the status, and the bottom half has several types of Internet access, up to 4 types, Ethernet, Repeater, Tethering, Cellular.

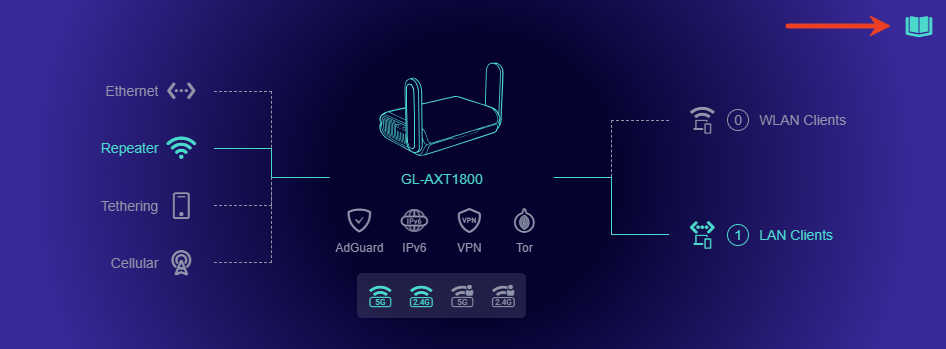

Status Diagram¶
- The left side of the diagram shows the current status of Internet access. A solid green line indicates that the network connection is available, a dashed gray line indicates that the network connection is not available, a solid white line and yellow triangle exclamation indicates that the connection is connected but cannot access the Internet.

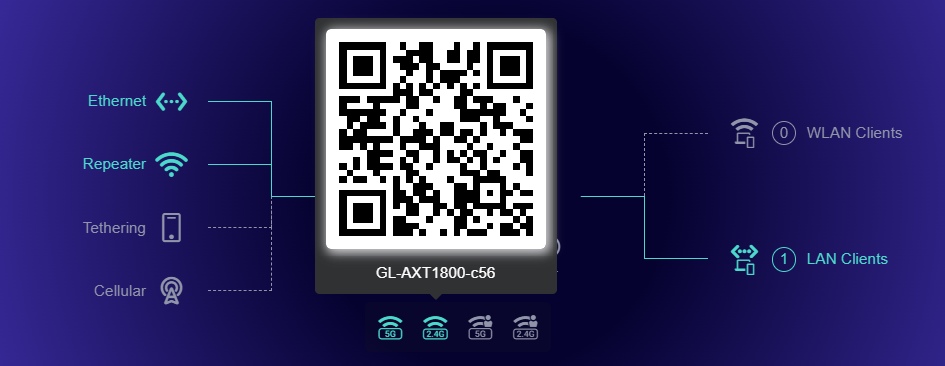

- In the middle of the diagram is the current router model number and the status of AdGuard Home, IPv6, VPN, Tor, 5G main WiFi, 2.4G main WiFi, 5G Guest WiFi and 2.4G Guest WiFi, with green indicating the feature is on and gray indicating the feature is off. The white color of VPN or Tor means the connection is in progress.
- The right side of the diagram shows the devices connected to the router, Clients, and the top right corner shows the devices connected by wireless, and the bottom right corner shows the devices connected by wired, and the number of devices connected is shown.
Internet Access Methods¶

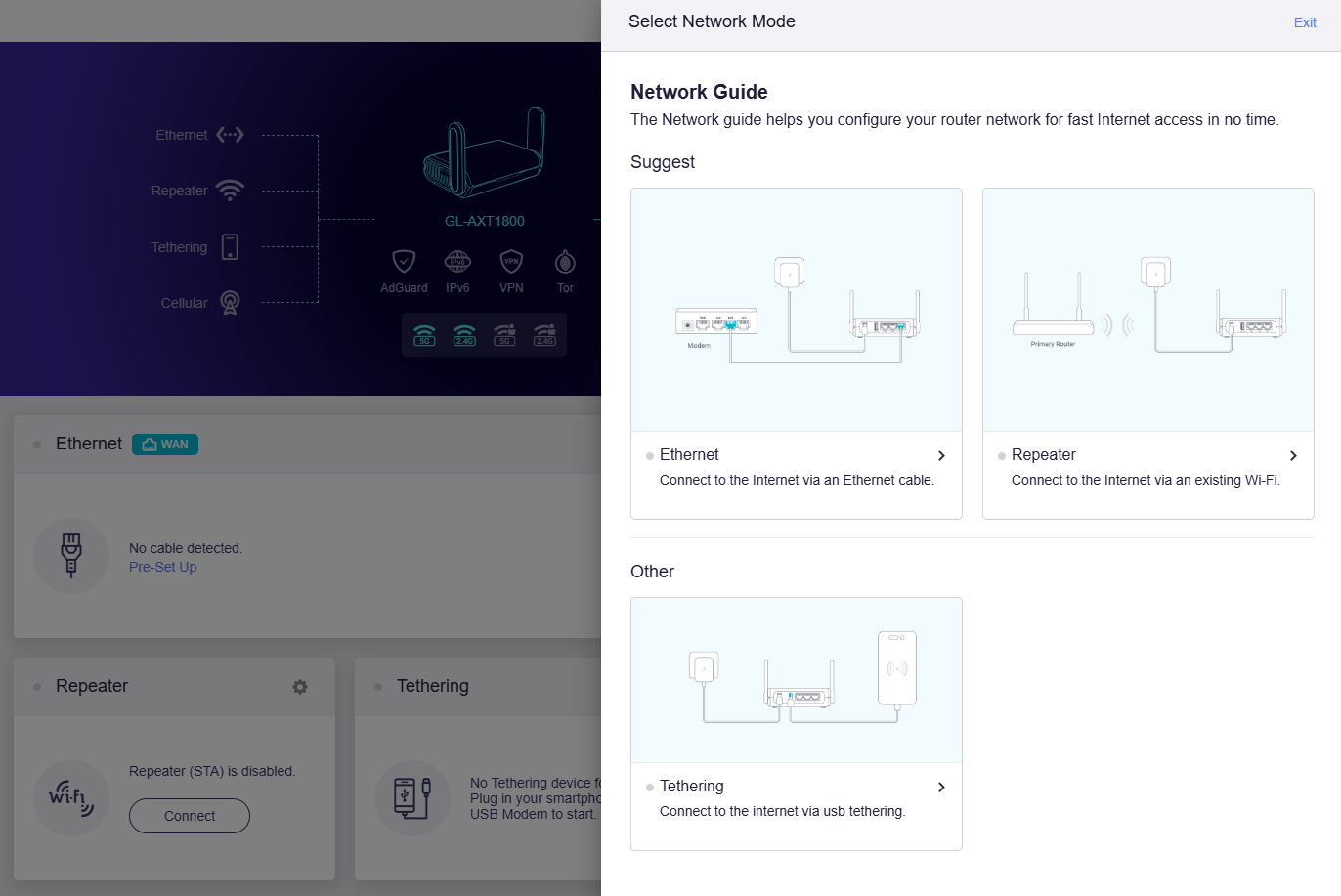

There are up to 4 types of Internet access, please refer to the corresponding tutorials
