SMS¶

GL.iNet cellular routers are equipped with a built-in modem that supports sending and receiving SMS messages after a SIM card is inserted.

Note: This feature only works on GL.iNet 4G/5G models with the original 4G LTE/5G NR module, and is not supported on other modules or any other USB modules.

Supported Models¶

Supported Models

GL-E5800 (Mudi 7)
GL-X2000 (Spitz Plus)
GL-X3000 (Spitz AX)
GL-XE3000 (Puli AX)
GL-E750/E750V2 (Mudi)
GL-X750/GL-X750V2 (Spitz)
GL-XE300 (Puli)
GL-X300B (Collie)

Unsupported Models

GL-MT5000 (Brume 3)
GL-MT3600BE (Beryl 7)
GL-BE6500 (Flint 3e)
GL-BE9300 (Flint 3)
GL-BE3600 (Slate 7)
GL-B3000 (Marble)
GL-MT6000 (Flint2)
GL-AX1800 (Flint)
GL-MT2500/GL-MT2500A (Brume 2)
GL-MT3000 (Beryl AX)
GL-AXT1800 (Slate AX)
GL-SFT1200 (Opal)
GL-A1300 (Slate Plus)
GL-MT1300 (Beryl)
GL-AR750S (Slate)
GL-MT300N-V2 (Mango)
GL-AR300M Series (Shadow)
GL-B1300 (Convexa-B)
GL-AP1300 (Cirrus)

Quick Setup¶

Take the GL-X3000 (Spitz AX) as an example.

Please refer to this link to set up the SIM card first.

On the left side of the web Admin Panel, go to INTERNET -> Cellular section.

Click the envelope icon in the upper right corner.

sms

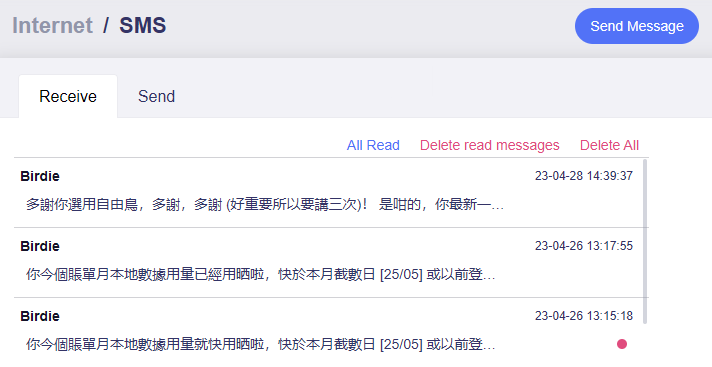

You will be directed to the SMS page, where you can view incoming messages or send new messages.

sms receive

Click a message to view the details.

sms detail

Click the Send Message button in the upper right corner to compose a new message.

sms new message

Recepient

You need to select the international area code and enter the number.
From modem (SIM)

Select which SIM card to send from.
SMS Content

Each SMS can have up to 160 characters.
