Toggle Button Settings¶

The Toggle Button Settings allow you to assign specific functions to the physical toggle button on your router for quick access and control, providing convenient shortcuts for common tasks.

You can customize the button’s behavior in the web Admin Panel.

Supported Models¶

Supported Models

GL-MT3600BE (Beryl 7)
GL-BE3600 (Slate 7)
GL-MT3000 (Beryl AX)
GL-AXT1800 (Slate AX)
GL-MT1300 (Beryl)
GL-SFT1200 (Opal)
GL-A1300 (Slate Plus)
GL-MT300N-V2 (Mango)
GL-AR300M Series (Shadow)
GL-E750V2 (Mudi V2)
GL-AR750S (Slate)
GL-AR750 (Creta)

Unsupported Models

GL-E5800 (Mudi 7)
GL-MT5000 (Brume 3)
GL-BE6500 (Flint 3e)
GL-BE9300 (Flint 3)
GL-X2000 (Spitz Plus)
GL-B3000 (Marble)
GL-MT6000 (Flint2)
GL-X3000 (Spitz AX)
GL-XE3000 (Puli AX)
GL-AX1800 (Flint)
GL-MT2500/GL-MT2500A (Brume 2)
GL-X750/GL-X750V2 (Spitz)
GL-XE300 (Puli)
GL-B1300 (Convexa-B)
GL-AP1300 (Cirrus)
GL-X300B (Collie)

Setup¶

On the left side of the web Admin Panel, go to SYSTEM -> Toggle Button Settings.

toggle button settings

Prior to firmware v4.8, there are four options, allowing users to customize the toggle button's functionality.

No Function
AdGuard Home
OpenVPN Client
Tor
WireGuard Client

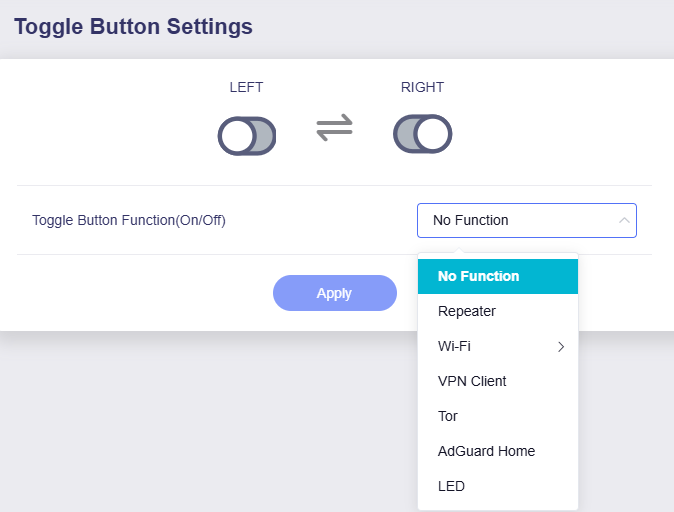

Since firmware v4.8, more options have been introduced: Repeater, Wi‑Fi, and LED. Users can customize the toggle buttons according to their needs.

No Function
Repeater
Wi-Fi (Main/Guest Wi-Fi)
VPN
Tor
AdGuard Home
LED

toggle button 4.8

When applying settings, you can decide whether or not to immediately enable/disable your selected feature based on the toggle switch's on/off(left/right) position.

Note: After a device reboot, the system will automatically apply the feature state according to the toggle switch position.

For example, if you configure the WireGuard Client to be controlled by the toggle switch: When the switch is LEFT (ON), the WireGuard Client starts automatically. When the switch is RIGHT (OFF), the WireGuard Client remains disabled.
