Build Your Own WireGuard Home Server with two GL.iNet Routers¶

This article will introduce how to set up your home router as the WireGuard VPN server and your travel router as the WireGuard VPN client to connect together remotely, so that you can use your home IP address with the travel router anywhere.

Here we use GL-MT6000 as the example to run WireGuard VPN server at the home site, and you can also choose other models such as GL-MT2500 if you don't require the wireless capacity. As for the travel router, we use GL-MT3000 as the example, and you can choose others as well.

Why you need to build own your WireGuard home server¶

Use your home IP address as the Internet address, acting as that you are just at home.
No need to pay the monthly fee when comparing with the 3rd parties VPN service.
Route all the Internet traffic to your home network via encrypted VPN tunnel and secure your privacy.
Easy access to your internal resources and local streaming.

Preparations¶

Check if you have a Public IP address¶

First, make sure the GL-MT6000 has a Public IP address on its WAN side, so that it can be globally accessed. Otherwise your travel router cannot build up a VPN connection with it while you are traveling.

To check if you have the Public IP address, please open a web browser and type in what is my ip in the address bar.

whatismyip

It will show your public IP address. If it matches the WAN IP provided by your ISP for the GL-MT6000, you have a public IP address.

If you don't have a public IP address, here are some methods for your reference.

If you have a main router, you shall login to it and check if it gets the Public IP from your ISP.
Ask your ISP for a Public IP address. It may require an extra fee.
If the above two ways don't work, for example, if you are in a CGNAT, you can take the reverse proxy method such as Astrorelay. Alternatively, you may try an SDWAN solution - AstroWarp.

Check if Port Forwarding is Required¶

GL.iNet as Main Router

If your GL.iNet Router is directly connected to a ISP modem via an Ethernet cable, the GL.iNet Router is the Main Router.

How to check if your GL.iNet Router connects to the ISP modem directly?

Steps:

Log in to the GL.iNet Admin Panel.
Select INTERNET from the left sidebar. Check the topology and connection details:

If directly connected via Ethernet, you will see a section named "Ethernet" with details such as Protocol, IP address, Gateway, etc.

Taking the following image as an example, the marked IP Address is the WAN IP provided by the ISP for this GL-iNet router.

This WAN IP is a public IP address, thus this GL.iNet router, acting as a Main router, has a public IP and no need to set a Port Forwarding for it.

You just need to set this GL.iNet router as WireGuard server, and a travel router as WireGuard Client connecting to the server. Then a VPN tunnel will be built between them.

GL.iNet as Sub-Router

Set up the Port Forwarding on your Main router for the GL.iNet router if the latter is behind NAT.

Topology

togologywgtp

Example: A TP-Link Router as your home main router.

Connect to the WiFi or LAN of your home router. Then login to the web Admin Panel. Check the WAN IP address it obtains from your ISP. In the image below, you can see that your public IP is 42.200.00.00.

tp_home

Before setting up port forwarding, we recommend reserving an IP address for the GL.iNet router on your Main router, so that a fixed IP can be assigned to the GL.iNet router. Otherwise, once the Main router or GL.iNet router restarts, the main router may assign a different IP address to the GL.iNet router, causing the port forwarding rule to fail.

Then set up the Port Forwarding on your Main router for the GL.iNet router.

Go to “Advanced” and click “virtual Server”, then “Add”.
Internal IP (Device IP): It is the IP address assigned to GL.iNet Router, you can find it in the client list of TP-Link
External/Internal port: Please fill both are "51820"
Protocol: You can choose "All or UDP or TCP/UDP"

tp_port1

More Port Forward examples

Set up the WireGuard server on GL.iNet Router¶

Enable DDNS (Optional)¶

Enable the DDNS function if you do not have a Public Static IP but only have a Public Dynamic IP.

Go to the web Admin Panel -> Applications -> Dynamic DNS and slide to enable

serverddns

Check the box below and click Apply.

ddnsapply

Then Go to WireGuard VPN server, make sure the Listen Port is 51820 and click “Apply.”

wgserver

Generate a Configuration¶

Click Profiles and Add a Client then it will automatically generate a client configuration. Click the square icon (point 2) and slide to use DDNS Domain. (point 3, Optional if you have dynamic IP only).

wgservergen

Use the WireGuard mobile app scan the QR to test the server.For details please click here.

Output a text format configuration for Client Installation¶

Change the configuration to text format by click Configuration File. Copy the text for the client or download and save it then drag it to the client later.

configload

Set up the WireGuard Client on GL-MT3000¶

Change the LAN IP¶

Login to the web Admin Panel of GL-MT3000 and go to the Network on the side bar and change the LAN IP.

Change the LAN IP

Add the Configuration¶

Go to the WireGuard Client and click Add Manually.

addwgclient1

Create a name for the connection and drag the configuration downloaded before or click Manually Add Configuration.

addwgclient2

Paste the Configuration Text onto it and then you can connect to the server now.

addwgclient3

Connect GL-MT3000 to your GL-MT6000 Server¶

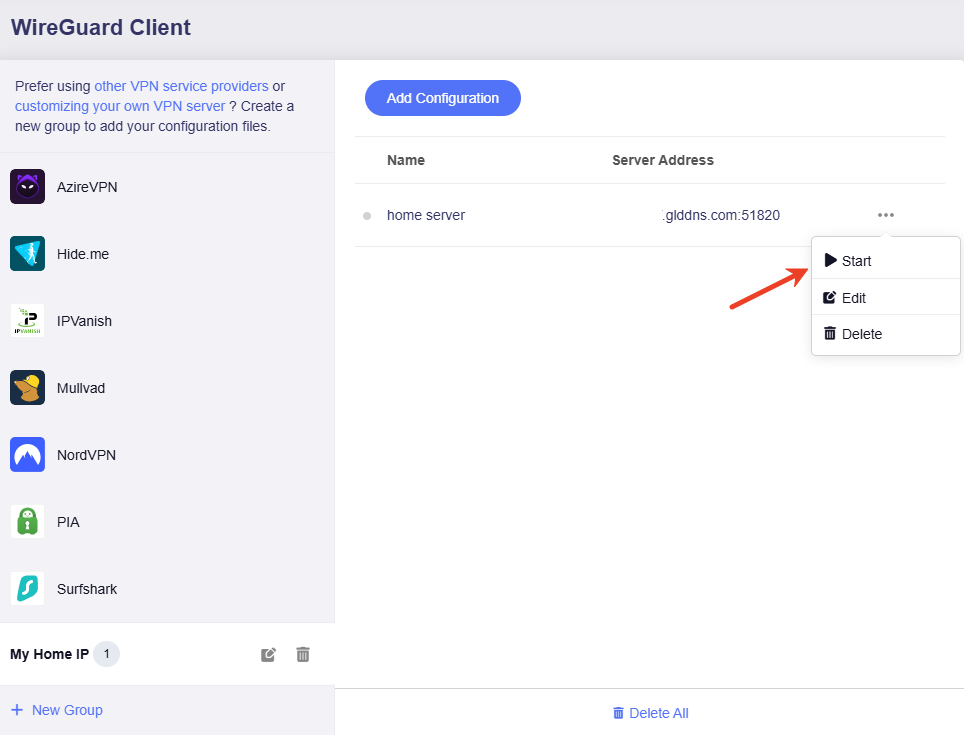

Click the name you just created, and it will show you the configuration you just loaded then click Start.

wgstart

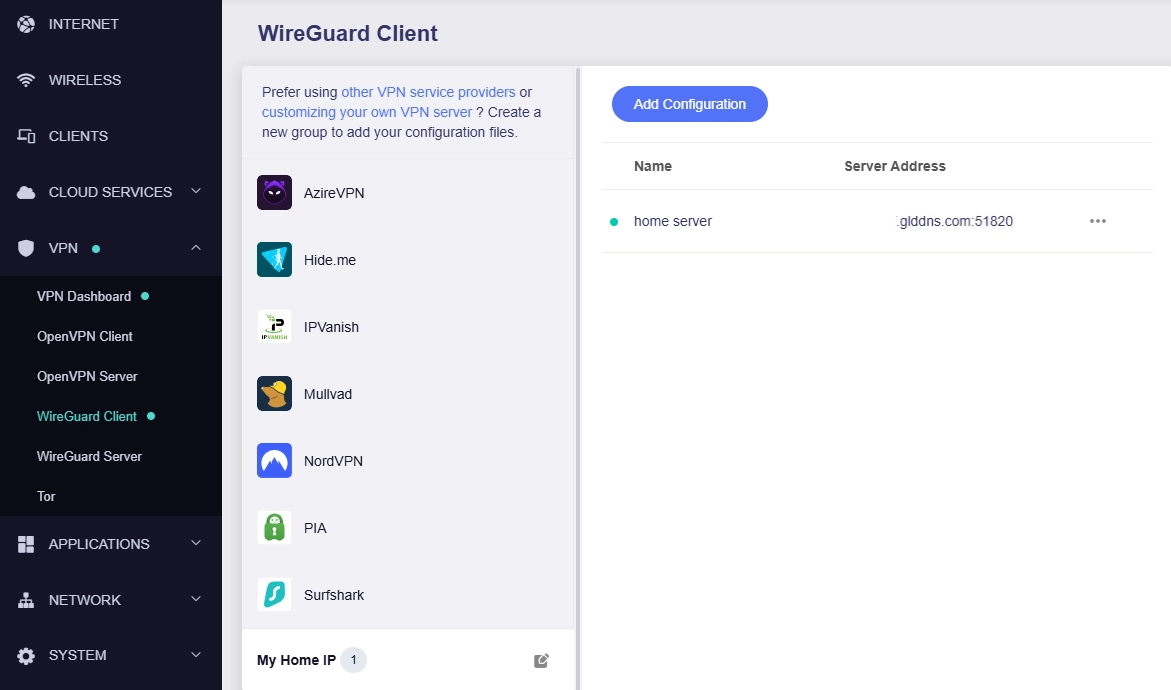

You will see your client is connecting to the server now with your Home Public IP.

clientup

Go back to the VPN DashBoard of GL-MT6000, you will also see the client is connected.

servercon

Use GoodCloud to manage the routers remotely in case of any problems when you are traveling¶

Sometimes your server may be down due to a power outage or other reasons, in order to maintain the accessibility of your server, please bind it our GoodCloud also.
